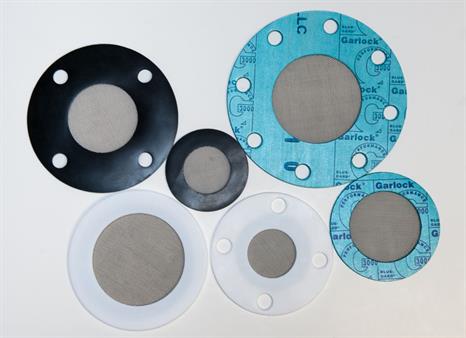

In-Line Mesh Gasket Strainers
Our In-Line Mesh Gasket Strainers are an effective way to protect
downstream meters and regulators from weld slag and other debris
in the gas stream. Available in full face or ring gaskets. Standard
material is Garlock 3000 "non-asbestos" fiber, and also available in
Teflon or rubberized material.
Dimensions per ANSI B 16.5 and AWWA C110 standards for pipe
flanges and gaskets.

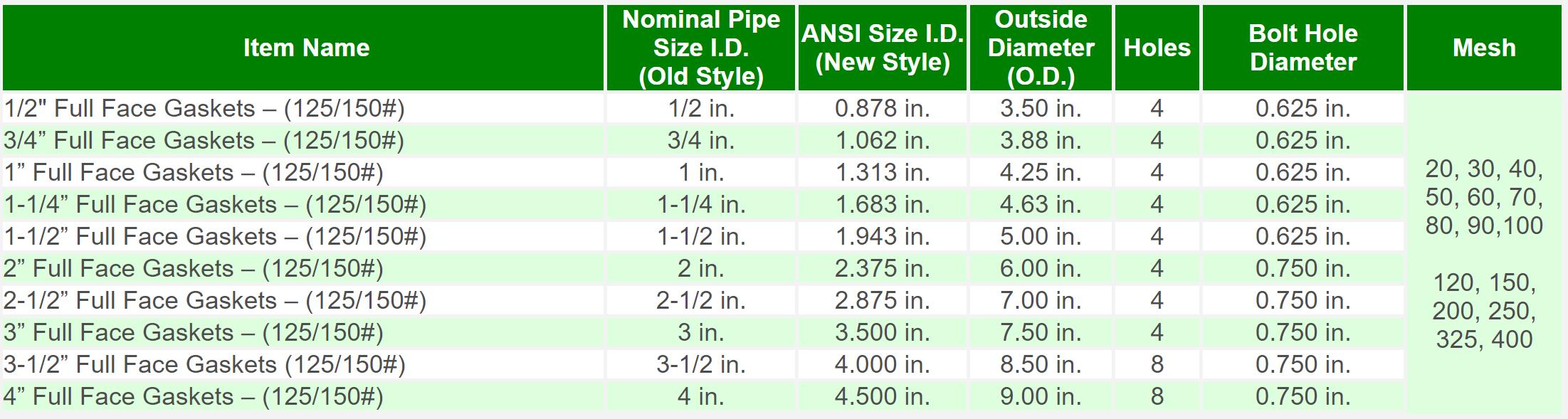

Dimension: Full Face Gaskets (125/150#)

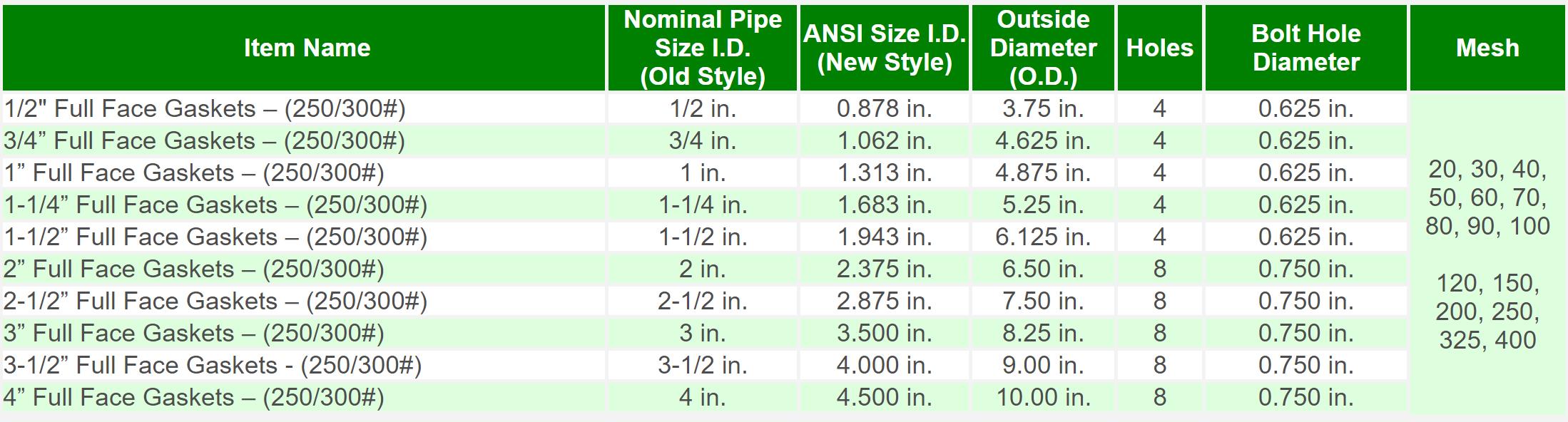

Dimension: Full Face Gaskets (250/300#)

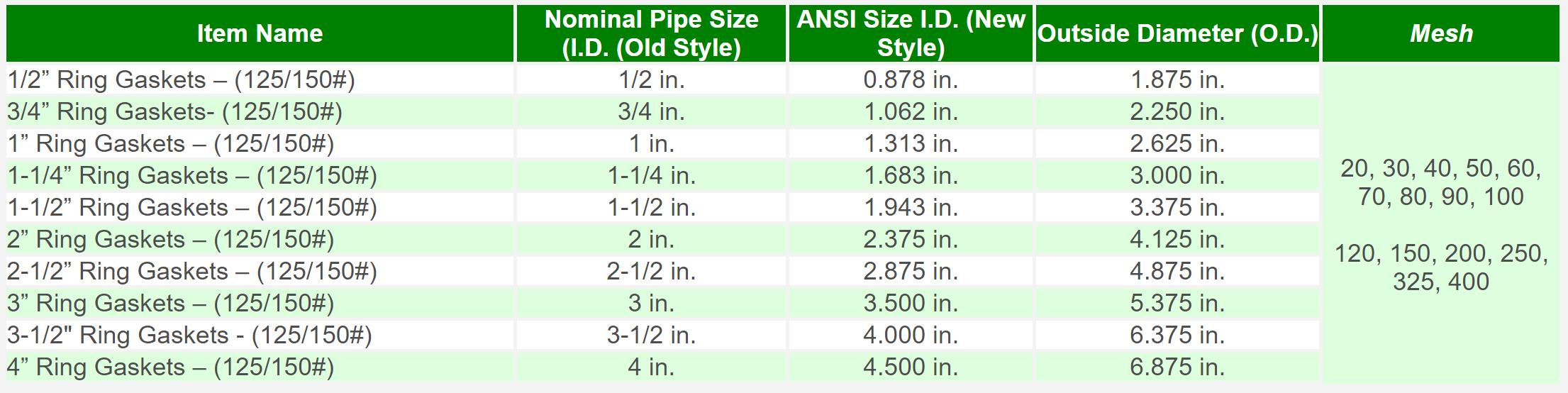

Dimension: Ring Gaskets (125/150#)

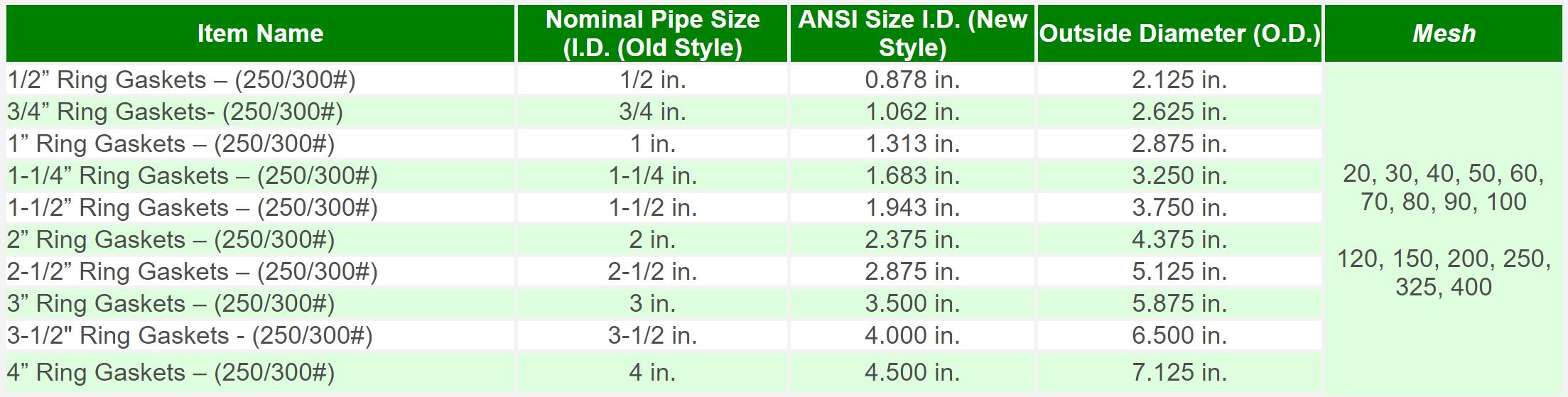

Dimension: Ring Gaskets (250/300#)
Custom Strainers
